BMSY Series Motor BMSY-160-F-S

  • Image 1
  • Image 2
Price:
$373.00
SKU:
BMSY-160-F-S
Quantity:


Product Description

BMSY 160.  Continuous max speed of 470 RPM, Intermittent max speed of 560 RPM.  1 1/4-14 DP Spline, 7/8-12 SAE Port

The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation.  These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.

Displacement

                            9.39 in3/rev



Maximum Speed

          Continuous    470 RPM

          Intermittent  560 RPM



Maximum Torque

          Continuous   4292 in.lbs

          Intermittent 4778 in.lbs



Maximum Differential

          Continuous   3045 PSI

          Intermittent 3265 PSI



Maximum Flow

          Continuous   19.81 gpm

          Intermittent 23.77 gpm



Weight

                        10.7 lbs





Continuous=maximum of continuous operation

Intermittent=maximum operating range for 6 seconds per minute

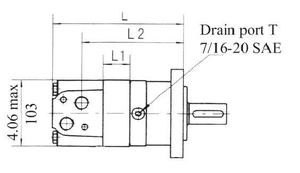

Sizing:

          L   7.22"

          L1 1.24"

          L2 5.49"
