- BMPH Series Motor BMPH-200-H4-S-S
Product Description
BMPH Series motor, SAE -“A” 4 BOLT mounting flange, SAE 6B Spline drive shaft, 7/8 -14 SAE Port. Replaces Char-Lynn 101-1061 or Danfoss 151-2056.
The BMPH ROTORTORC™ gear set, shaft distribution flow, hydraulic motors is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems.
These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
11.60 in3/rev
Max Speed
Continuous 295 RPM
Intermittent 370 RPM
Max Torque
Continuous 2530 in.lbs
Intermittent 3450 in.lbs
Max Differential
Continuous 1625 PSI
Intermittent 2425 PSI
Max Flow
Continuous 15.80 gpm
Intermittent 19.75 gpm
Weight
14.10 lbs
Continuous = maximum of continuous operation
Intermittent = maximum operating range for 6 seconds per minute

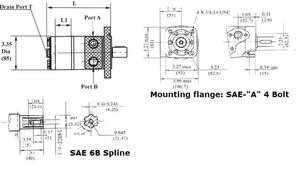

Sizing
L 6.30"
L1 1.02"
For optimal utilization of these motors the following is recommended:
* Normal oil operating temperature should be 70° to 150° F.
* Maximum operating temperature should not exceed 190° F.
* Filtration level per ISO Cleanliness Code level 18/3.
* Minimum oil viscosity should be 100 SUS.
* Motors should be operated at less than 30% of rated performance for the first hour of operation.
* Simultaneous maximum torque and maximum speed is not recommended.
