- BMPH Series Motor BMPH-80-H2-K-F
Product Description
BMPH Series motor, SAE - "A" 2 Bolt mounting flange, 1" Woodruff Key drive shaft, Manifold Port. Replaces Char-Lynn 101-1042 or Danfoss 151-2162.
The BMPH ROTORTORC gear set, shaft distribution flow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems.
These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
4.75 in3/rev
Max Speed
Continuous 740 RPM
Intermittent 825 RPM
Max Torque
Continuous 1140 in.lbs
Intermittent 1514 in.lbs
Max Differential
Continuous 1840 PSI
Intermittent 2425 PSI
Max Flow
Continuous 15.80 gpm
Intermittent 19.75 gpm
Weight
12.54 lbs
Continuous = maximum of continuous operation
Intermittent = maximum operating range for 6 seconds per minute

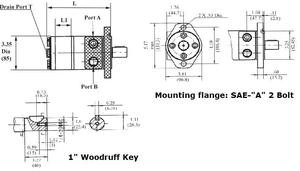

Sizing
L 5.69"
L1 0.41"
For optimal performance, the following is recommended:
* Normal oil operating temperature should be 70° to 150°F.
* Maximum operating temperature should not exceed 190°F.
* Filtration level per ISO Cleanliness Code level 18/3.
* Minimum oil viscosity should be 100 SUS
* Motors should be operated at less than 30% of rated performance for the first hour of operation.
* Simultaneous maximum torque and maximum speed is not recommended.
The BMPH ROTORTORC gear set, shaft distribution flow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems.
These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
4.75 in3/rev
Max Speed
Continuous 740 RPM
Intermittent 825 RPM
Max Torque
Continuous 1140 in.lbs
Intermittent 1514 in.lbs
Max Differential
Continuous 1840 PSI
Intermittent 2425 PSI
Max Flow
Continuous 15.80 gpm
Intermittent 19.75 gpm
Weight
12.54 lbs
Continuous = maximum of continuous operation
Intermittent = maximum operating range for 6 seconds per minute
Sizing
L 5.69"
L1 0.41"
For optimal performance, the following is recommended:
* Normal oil operating temperature should be 70° to 150°F.
* Maximum operating temperature should not exceed 190°F.
* Filtration level per ISO Cleanliness Code level 18/3.
* Minimum oil viscosity should be 100 SUS
* Motors should be operated at less than 30% of rated performance for the first hour of operation.
* Simultaneous maximum torque and maximum speed is not recommended.
