- BMRS Series Motor BMRS-160-H2-S-S
Product Description
BMRS Series motor, SAE -“A” 2 BOLT mounting flange, SAE 6B Spline drive shaft, 7/8 -14 SAE Port. Replaces Char Lynn 103-1084 & 103-1554 or Danfoss 151-2315.
The BMRS ROTORTORC gear set, shaft distribution flow, hydraulic motor is a compact, low noise , high efficient, high torque, low speed design. The ROLORTORC gear set also affords a reliable smoth start up at low pressure.
The low weight advanced construction design is manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
9.60 in3/rev
Max Speed
Continuous 375 RPM
Intermittent 470 RPM
Max Torque
Continuous 3273 in.lbs
Intermittent 3806 in.lbs
Max Differential
Continuous 2429 PSI
Intermittent 2944 PSI
Max Flow
Continuous 15.80 gpm
Intermittent 19.75 gpm
Weight
16.50 lbs
Continuous = maximum of continuous operation
Intermittent = maximum operating range for 6 seconds per minute

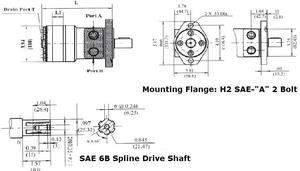

Sizing
L 6.51"
L1 1.24"
For optimal performance, the following is recommended:
* Normal oil operating temperature should be 70° to 150°F.
* Maximum operating temperature should not exceed 190°F.
* Filtration level per ISO Cleanliness Code level 18/3.
* Minimum oil viscosity should be 100 SUS
* Motors should be operated at less than 30% of rated performance for the first hour of operation.
* Simultaneous maximum torque and maximum speed is not recommended.
The BMRS ROTORTORC gear set, shaft distribution flow, hydraulic motor is a compact, low noise , high efficient, high torque, low speed design. The ROLORTORC gear set also affords a reliable smoth start up at low pressure.
The low weight advanced construction design is manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
9.60 in3/rev
Max Speed
Continuous 375 RPM
Intermittent 470 RPM
Max Torque
Continuous 3273 in.lbs
Intermittent 3806 in.lbs
Max Differential
Continuous 2429 PSI
Intermittent 2944 PSI
Max Flow
Continuous 15.80 gpm
Intermittent 19.75 gpm
Weight
16.50 lbs
Continuous = maximum of continuous operation
Intermittent = maximum operating range for 6 seconds per minute
Sizing
L 6.51"
L1 1.24"
For optimal performance, the following is recommended:
* Normal oil operating temperature should be 70° to 150°F.
* Maximum operating temperature should not exceed 190°F.
* Filtration level per ISO Cleanliness Code level 18/3.
* Minimum oil viscosity should be 100 SUS
* Motors should be operated at less than 30% of rated performance for the first hour of operation.
* Simultaneous maximum torque and maximum speed is not recommended.
