- BMSY Series Motor BMSY-100-E2-G-S
Product Description

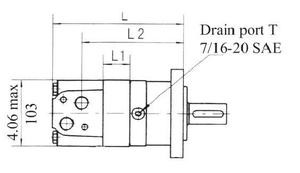

BMSY 100. 2-Bolt Mount, 1-1/4" Parallel Key Shaft, 7/8-14 SAE Ports. Replaces Char Lynn 104-1023 & 104-1904 (104-1904 is painted black, replacement is unpainted).
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
6.15 in3/rev
Maximum Speed
Continuous 748 RPM
Intermittent 900 RPM
Maximum Torque
Continuous 2124 in.lbs
Intermittent 2655 in.lbs
Maximum Differential
Continuous 2576 PSI
Intermittent 3091 PSI
Maximum Flow
Continuous 34.1 gpm
Intermittent 40.9 gpm
Weight
11.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
6.15 in3/rev
Maximum Speed
Continuous 748 RPM
Intermittent 900 RPM
Maximum Torque
Continuous 2124 in.lbs
Intermittent 2655 in.lbs
Maximum Differential
Continuous 2576 PSI
Intermittent 3091 PSI
Maximum Flow
Continuous 34.1 gpm
Intermittent 40.9 gpm
Weight
11.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
