Product Description

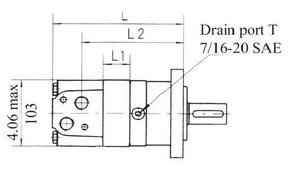

BMSY 125. 2-Bolt Mount, 1" Woodruff Key, 7/8 in. O-ring-14 SAE Ports. Replaces Char Lynn 104-1003.
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
7.63 in3/rev
Maximum Speed
Continuous 600 RPM
Intermittent 720 RPM
Maximum Torque
Continuous 2744 in.lbs
Intermittent 2744 in.lbs
Maximum Differential
Continuous 2576 PSI
Intermittent 2576 PSI
Maximum Flow
Continuous 34.1 gpm
Intermittent 40.9 gpm
Weight
22.7 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
7.63 in3/rev
Maximum Speed
Continuous 600 RPM
Intermittent 720 RPM
Maximum Torque
Continuous 2744 in.lbs
Intermittent 2744 in.lbs
Maximum Differential
Continuous 2576 PSI
Intermittent 2576 PSI
Maximum Flow
Continuous 34.1 gpm
Intermittent 40.9 gpm
Weight
22.7 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
