- BMSY Series Motor BMSY-200-F-S
Product Description
BMSY 200 Motor. Continuous max speed of 375 RPM, Intermittent max speed of 450 RPM. 1 1/4-14 DP Spline, 7/8-12 SAE Port
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
11.83 in3/rev
Maximum Speed
Continuous 375 RPM
Intermittent 450 RPM
Maximum Torque
Continuous 5185 in.lbs
Intermittent 5707 in.lbs
Maximum Differential
Continuous 3045 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
24.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute

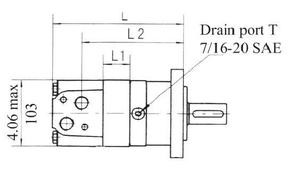

Sizing:
L 7.57"
L1 1.57"
L2 5.83"
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
11.83 in3/rev
Maximum Speed
Continuous 375 RPM
Intermittent 450 RPM
Maximum Torque
Continuous 5185 in.lbs
Intermittent 5707 in.lbs
Maximum Differential
Continuous 3045 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
24.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
Sizing:
L 7.57"
L1 1.57"
L2 5.83"
