Product Description
BMSY-315. Continuous max speed of 240 RPM, Intermittent max speed of 280 RPM. 1 1/4” Parallel Key, 1/2 NPTF Port. Replaces Char-Lynn 104-1028 & 104-1632 (104-1632 is painted black; replacement is unpainted).
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
18.97 in3/rev
Maximum Speed
Continuous 240 RPM
Intermittent 280 RPM
Maximum Torque
Continuous 7787 in.lbs
Intermittent 8495 in.lbs
Maximum Differential
Continuous 2900 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
27.1 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute

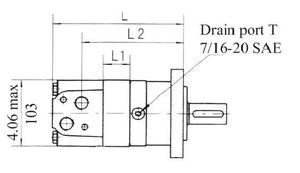

Sizing:
L 8.43"
L1 2.44"
L2 6.69"
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
18.97 in3/rev
Maximum Speed
Continuous 240 RPM
Intermittent 280 RPM
Maximum Torque
Continuous 7787 in.lbs
Intermittent 8495 in.lbs
Maximum Differential
Continuous 2900 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
27.1 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
Sizing:
L 8.43"
L1 2.44"
L2 6.69"
