Product Description
DESCRIPTION

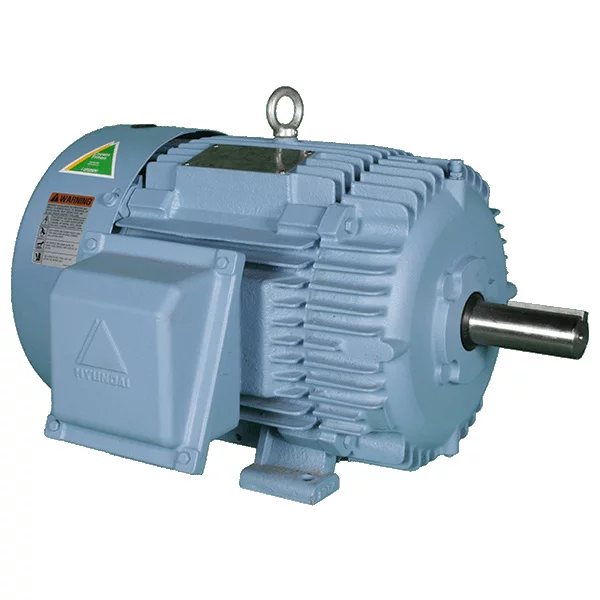

Hyundai Electric is globally recognized as a premium brand due to the superior performance, rigorous quality standards, and notable longevity of their motors. The Hyundai Crown Triton™ Severe Duty Motor is no exception. Designed to perform under both severe duty and general purpose applications, these premium efficient motors feature cast iron enclosures and conduit boxes, shaft slingers, and IP55 protection.
SPECIFICATIONS
Horsepower
25
RPM
3600
Phase
Three-Phase
Frequency
60/50 HZ*
Voltage
208-230/460
Frame Size
284T
Enclosure Type
TEFC
Degree of Protection
IP55
Service Factor
1.15 for 40°C / 1.0 for 65°C
Insulation Class
Class F insulation with Class N varnish
FL Efficiency (%)
91.7
Approvals
CSA certified for Class 1, Division 2, Groups A, B, C, D, IEEE-45 Marine Duty Rated
Approximate Weight
380
Mounting Type
Rigid Base
