HHI75-18-365TS

Image 1
  • Image 1
Price:
$7,582.93
SKU:
HHI75-18-365TS
Quantity:

Product Description

DESCRIPTION

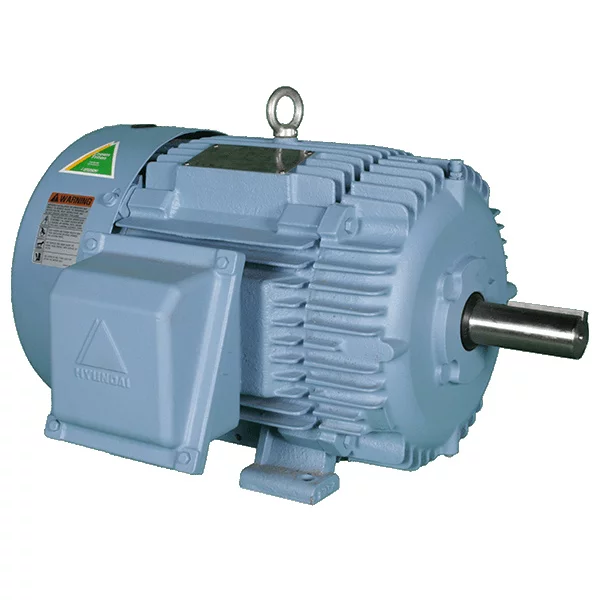

Hyundai Electric is globally recognized as a premium brand due to the superior performance, rigorous quality standards, and notable longevity of their motors. The Hyundai Crown Triton™ Severe Duty Motor is no exception. Designed to perform under both severe duty and general purpose applications, these premium efficient motors feature cast iron enclosures and conduit boxes, shaft slingers, and IP55 protection.

SPECIFICATIONS

Horsepower
75
RPM
1800
Phase
Three-Phase
Frequency
60/50 HZ*
Voltage
208-230/460
Frame Size
365TS
Enclosure Type
TEFC
Degree of Protection
IP55
Service Factor
1.15 for 40°C / 1.0 for 65°C
Insulation Class
Class F insulation with Class N varnish
Full Load Amps
85
FL Efficiency (%)
95.4
Approvals
CSA certified for Class 1, Division 2, Groups A, B, C, D, IEEE-45 Marine Duty Rated
Approximate Weight
820
Mounting Type
Rigid Base
