- Home
- Char Lynn Replacement Motors
- BMSY Series Motor BMSY-250-E2-K-S
Product Description
BMSY 250. 2-Bolt Mount, 1" Woodruff Key shaft, 7/8-14 SAE Ports. Replaces Char Lynn 104-1006.
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
14.83 in3/rev
Maximum Speed
Continuous 300 RPM
Intermittent 360 RPM
Maximum Torque
Continuous 6265 in.lbs
Intermittent 1132 in.lbs
Maximum Differential
Continuous 2900 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
11.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute

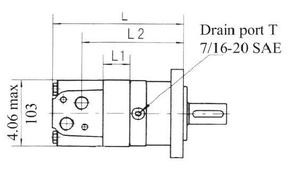

Sizing:
L 7.95"
L1 1.97"
L2 6.22"
The BMSY series motor adapts the advanced ROLORTORC™ gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
Displacement
14.83 in3/rev
Maximum Speed
Continuous 300 RPM
Intermittent 360 RPM
Maximum Torque
Continuous 6265 in.lbs
Intermittent 1132 in.lbs
Maximum Differential
Continuous 2900 PSI
Intermittent 3265 PSI
Maximum Flow
Continuous 19.81 gpm
Intermittent 23.77 gpm
Weight
11.6 lbs
Continuous=maximum of continuous operation
Intermittent=maximum operating range for 6 seconds per minute
Sizing:
L 7.95"
L1 1.97"
L2 6.22"
