3 way high pressure ball valve, reduced port, 1 1/2" NPT thread, up to 5000 PSI

·         Rugged carbon steel construction

·         Blow-Out proof stems

·         0.98" reduced port

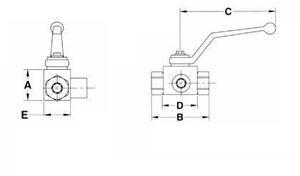

Sizing:

        A 2.56"

        B 4.88"

        C 2.60"

        D 3.26"

        E 3.26"

        F 2.16"

        G 7.08"

       SW 0.55"
