3 way high pressure ball valve, full port, 3/4" NPT thread, up to 5000 PSI

·         Rugged carbon steel construction

·         Blow-Out proof stems

·         0.79" full port

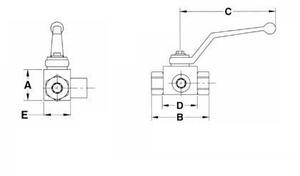

Sizing:

        A 2.17"

        B 3.74"

        C 2.44"

        D 0.51"

        E 2.87"

        F 1.77"

        G 7.08"

       SW 0.55"
